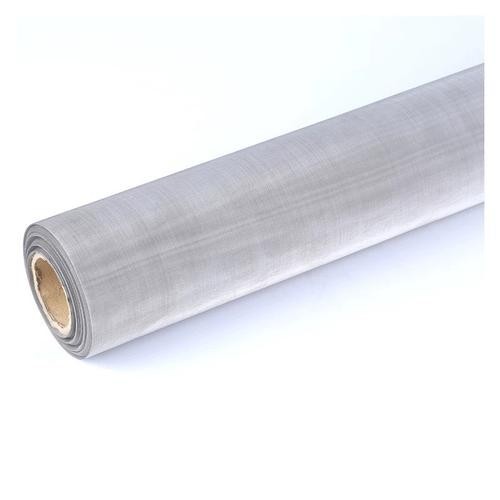

Ss Woven Wire Mesh
SS woven wire mesh is a high-precision industrial material manufactured by weaving stainless steel wires into a specific pattern. This production method creates a stable structure with uniform openings, making it ideal for liquid and gas filtration. It resists corrosion, acid, and high temperatures, ensuring long service life in harsh environments. The product is a primary choice for industries that require consistent screening and separation performance.
- Product Introduction
SS woven wire mesh is available in mesh counts ranging from 1 to 635 per linear inch to meet diverse filtration requirements. We manufacture this mesh using wire diameters from 0.02 mm for fine filtering up to 2.0 mm for heavy-duty screening. The material grades include SUS 304, 304L, 316, and 316L, which provide oxidation resistance at temperatures up to 800°C (1472°F). Our weaving process maintains an aperture tolerance within ±3%, ensuring precise particle size control. For specialized filtration, we offer Dutch weave patterns that provide an absolute filtration rating down to 5 microns.
Product Specifications
|
Main materials |
304 stainless steel, 316 stainless steel, 316L stainless steel |
|
Wire diameter |
0.025mm - 2.0mm (Common range: 0.05mm - 0.5mm) |
|
Aperture |
0.02mm - 25mm |
|
Weaving method |
Plain weave, twill weave, satin weave |
|
Web width |
Typically 0.5 meters to 1.5 meters (other widths can be customized). |
|
Product form |
In roll form (approximately 30 meters in length) or sheet form (cut to size as required). |
Application areas
High-precision filtration and screening
Used for liquid and powder filtration and particle classification in the petroleum, chemical, food, pharmaceutical, and water treatment industries.
Industrial safety protection
Used as vibrating screen mesh, protective barriers, and ventilation grilles in mining, energy, and machinery fields, offering high strength and wear resistance.
Construction and material reinforcement
Used in concrete crack-resistant reinforcement mesh, GRC wall reinforcement mesh, screen printing stencils, and laminated glass, providing structural reinforcement.
Scientific research and precision applications
Meeting the stringent filtration, screening, or shielding requirements of laboratories and high-precision instruments.
Customized services
Product Specifications Customization
We support customization of materials (such as 304/316 stainless steel), wire diameter, mesh size/aperture, weaving method, width, length, and edge treatment.
Packaging and Logistics Customization
Based on your transportation distance and protection requirements, we provide tailored professional packaging solutions in roll or sheet form, and support designated logistics and export documentation processing.
Production and Batch Customization
Leveraging our own production lines, we can handle both large-volume standard product orders and flexibly arrange the production of small-batch, multi-specification customized products, while ensuring consistent quality.
Technical Support and Solution Customization
We provide comprehensive technical support, from product selection and technical consultation to drawing evaluation and application solution design.
Strict quality control
The company has a strict, comprehensive management system for quality control:
Authoritative system certifications
The company has obtained ISO 9001:2015 Quality Management System, ISO 14001:2015 Environmental Management System, and ISO 45001:2018 Occupational Health and Safety Management System certifications, ensuring that all aspects of production are standardized and controllable.
Core dimensional accuracy control
Wire diameter tolerance control: High-precision measuring instruments are used to inspect the diameter of the raw material wire and the finished mesh wire to ensure that they meet the precise tolerance range required by the customer (usually controllable within ±0.02mm). Mesh uniformity inspection: Through professional testing equipment or optical projectors, multi-point sampling measurements are performed on the mesh size (mesh count/aperture) to ensure that the mesh size is uniform throughout the entire sheet, without continuous deformation or variations in hole size.
Surface coating quality inspection
For galvanized products, a magnetic thickness gauge is used to check whether the zinc layer thickness meets the standard (e.g., average thickness ≥45μm), and a salt spray test is conducted to evaluate its corrosion resistance and ensure the quality of corrosion protection.
Frequently Asked Questions (FAQ)
What is the difference between 304 and 316 stainless steel mesh?
Grade 304 is the standard industrial grade for most environments. Grade 316 contains molybdenum, which offers superior resistance to chlorides and corrosion in marine or chemical processing environments.
Can you customize the width of the mesh rolls?
Yes, we can produce SS woven wire mesh in custom widths ranging from 0.5 meters to 4 meters to suit your specific machinery or installation requirements.
What is the standard lead time for wholesale orders?
For standard specifications, we typically ship within 7 to 10 days. For large-scale or customized bulk orders, the lead time is usually 15 to 20 days.
SS woven wire mesh production at our 23,500-square-meter facility is supported by over 200 sets of advanced weaving looms. Our technical team consists of 20 engineers and 100 technicians who manage high-volume wholesale orders and technical specifications. We support full customization, including specific roll widths up to 4 meters and custom roll lengths to minimize material waste for our clients. We utilize CAD design software to develop specialized mesh solutions for complex industrial equipment. Our facility maintains a large inventory of standard specifications to ensure fast shipping for bulk buyers.
