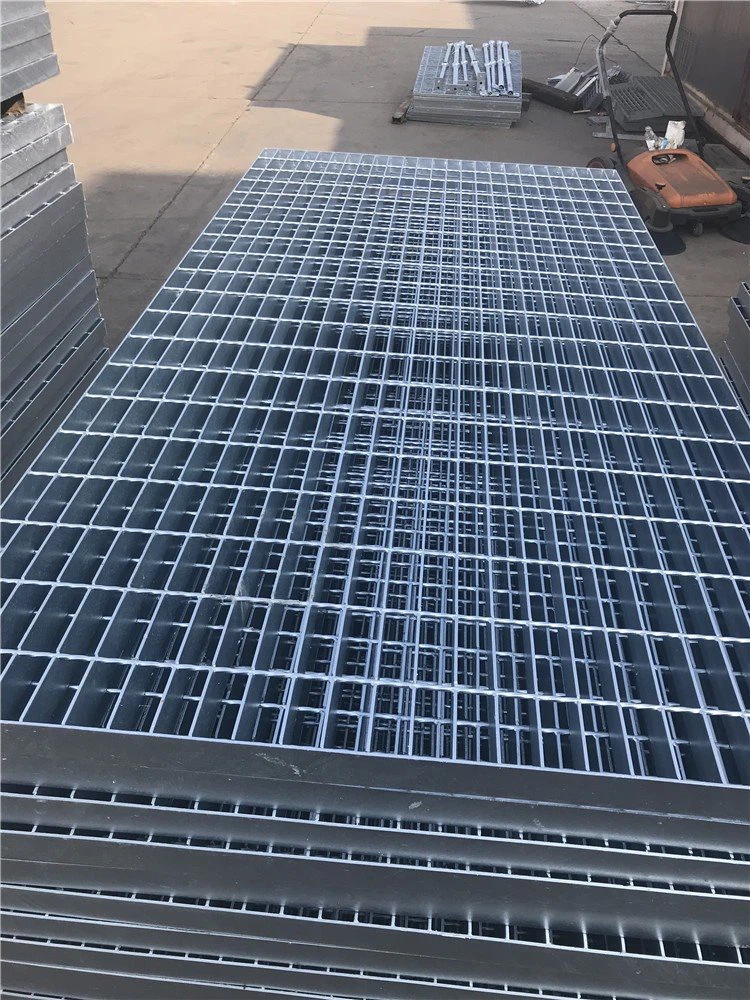

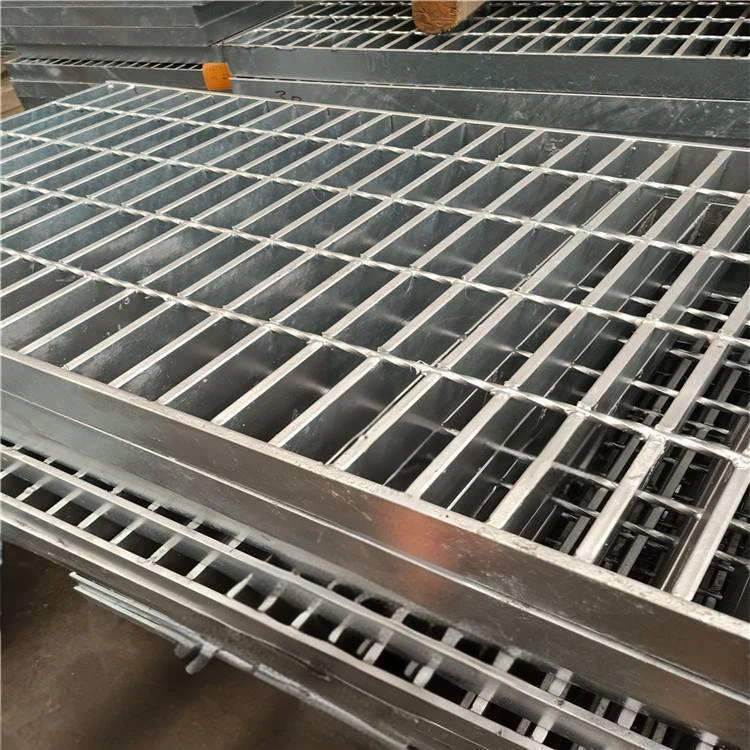

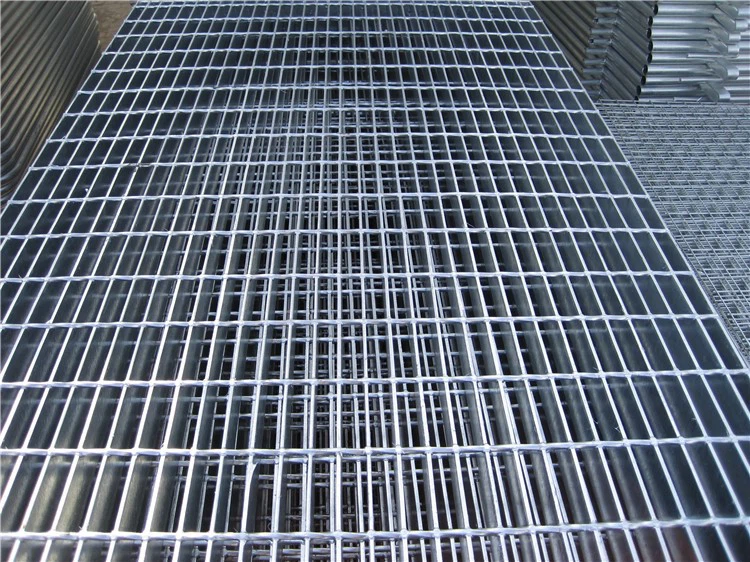

Flat Grating

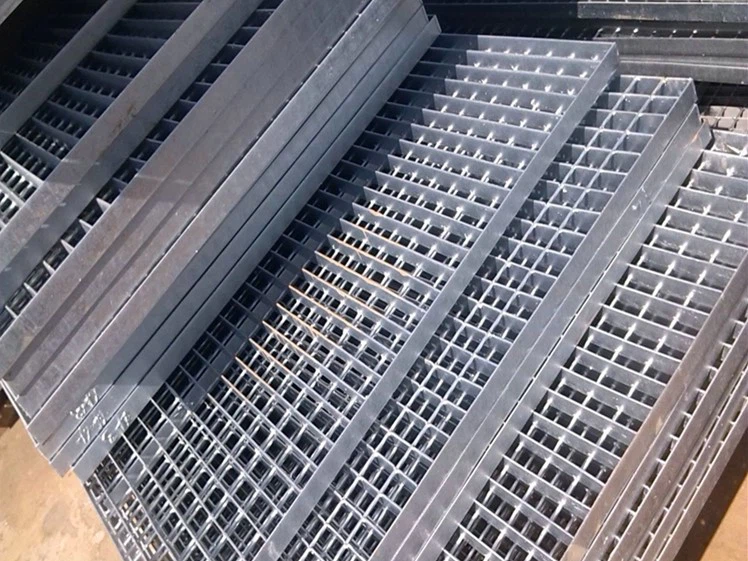

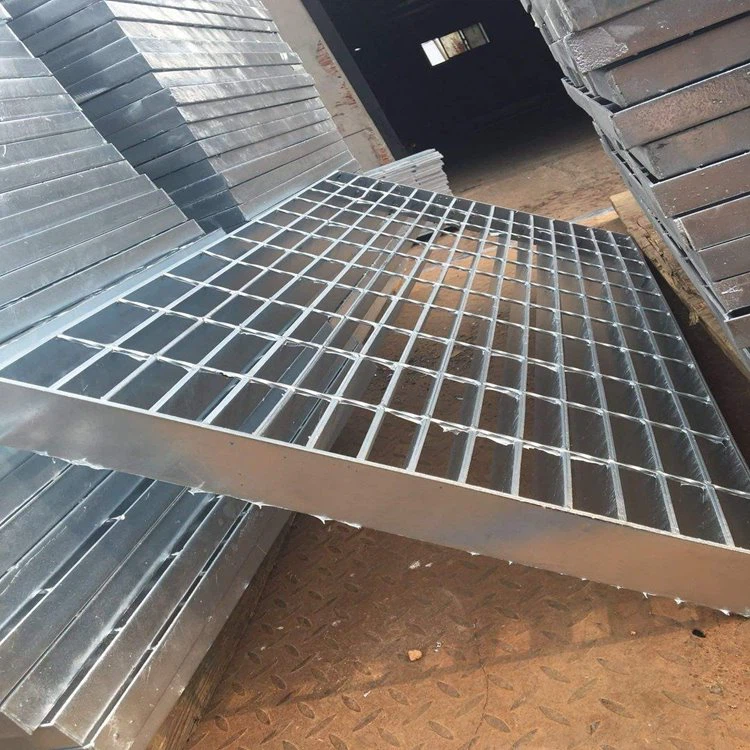

Flat grating is a kind of steel product that is made of flat steel and cross bars (twisted square steel, square steel, round steel, flat steel, etc.) arranged crosswise at a certain interval and welded into a square grid in the middle. Flat grating is mainly used for ditch covers, steel structure platform plates, steel ladder treads, etc. The cross bars are generally made of twisted square steel. Flat grating is generally made of carbon steel, and the surface is hot-dip galvanized to prevent oxidation. It can also be made of stainless steel. Flat grating has ventilation, lighting, heat dissipation, anti-slip, explosion-proof and other properties.

Send Inquiry

Product Introduction

Product Specifications

Material	Q235 low-carbon steel, 304 and 316 stainless steel, etc.
Thickness	3mm - 100mm
Width	20mm - 100mm

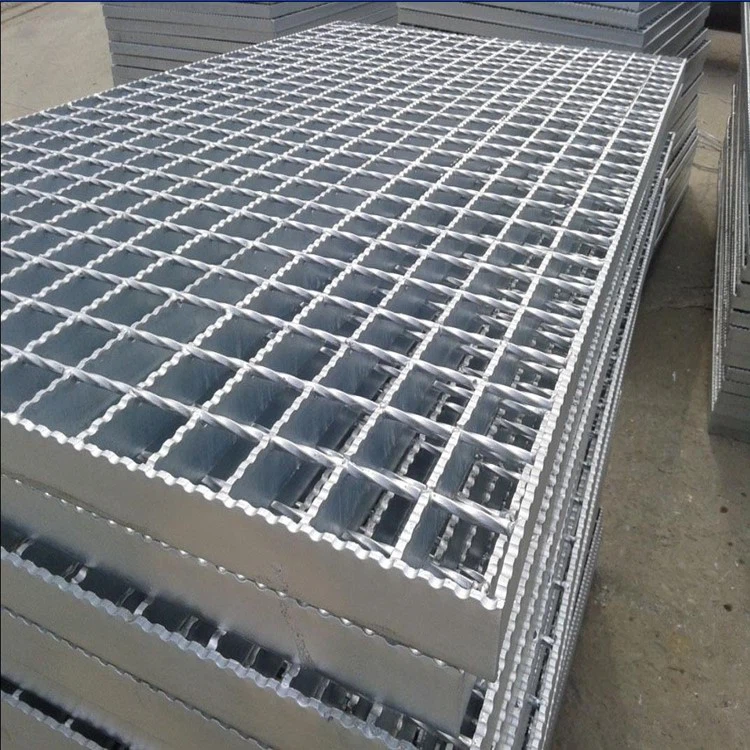

Type	Flat type, toothed type (anti-slip)
Board length	1000mm - 6000mm(Customizable)
Board width	500mm - 1000mm(Customizable)
Grid dimensions (length × width)	Common sizes include 30mm × 50mm, 40mm × 100mm, etc.
Surface treatment	Hot-dip galvanizing, electro-galvanizing, painting, plastic coating, stainless steel (natural color)

Classification

Flat grating is generally divided into galvanized flat grating, stainless steel flat grating, platform flat grating, ditch cover, composite flat grating, plug-in flat grating, toothed flat grating, special-shaped flat grating, etc.

Application Scenario

1. Industrial field

Platforms and walkways: used for operating platforms and maintenance passages in factory workshops, mines, docks, etc., with strong bearing capacity and good ventilation and heat dissipation.
Equipment support: used as the base or shelf layer of heavy machinery, such as warehouse shelves and ball mill perimeter protection.
Anti-slip facilities: Toothed flat grating is often used in humid environments such as oil fields and ship decks to prevent people from slipping.

2. Municipal and public facilities

Drainage system: used as ditch covers and inspection well covers, which can quickly drain water and prevent blockage, reducing the risk of urban waterlogging.
Guardrails and enclosures: Guardrails on both sides of industrial parks and bridges, with both safety and transparency.
Architecture and decoration

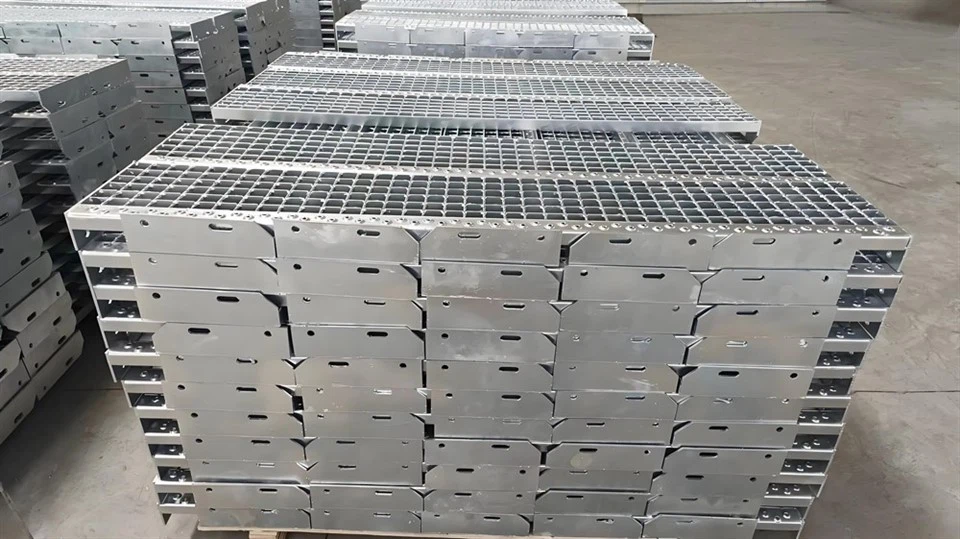

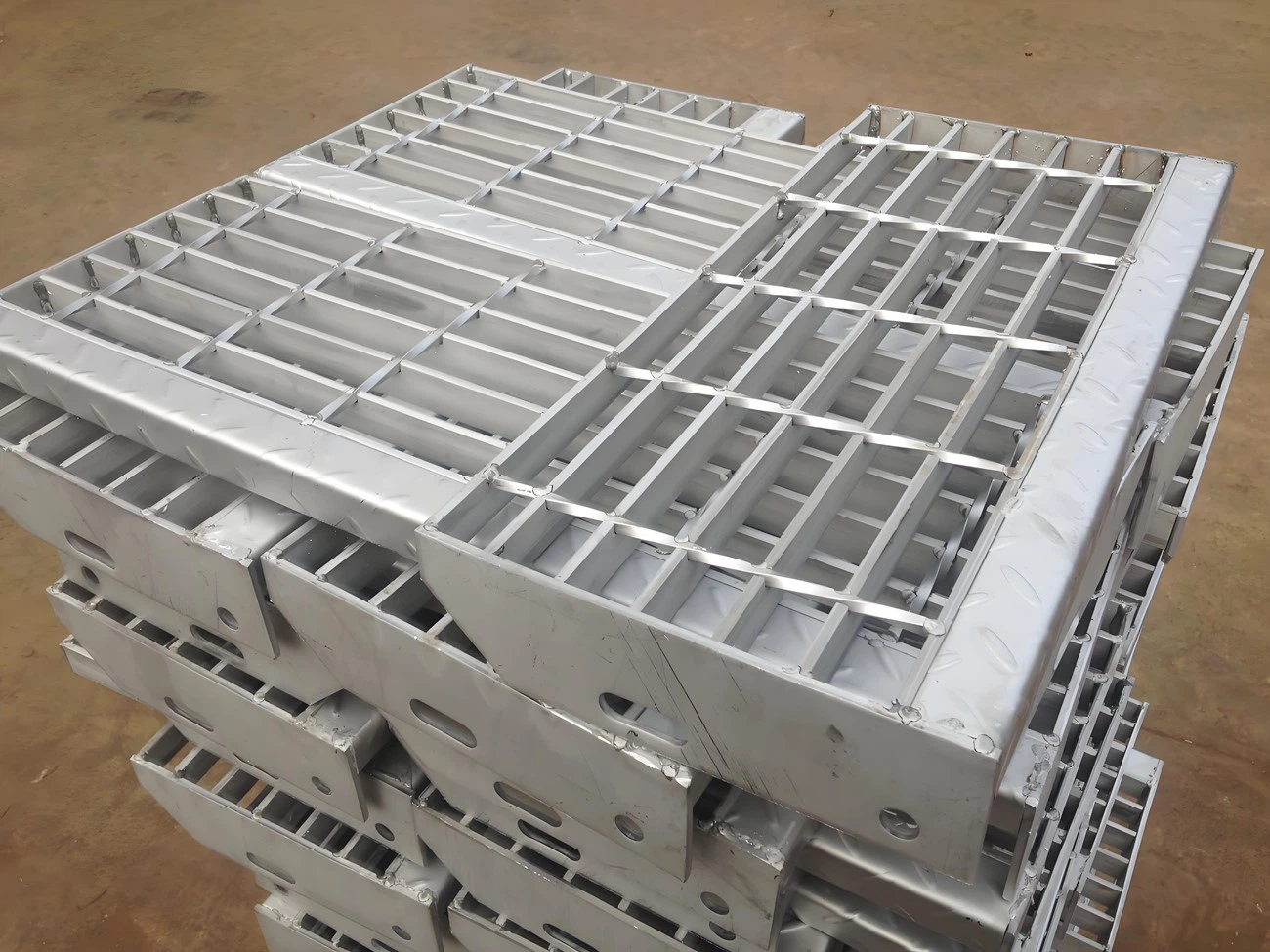

Stair treads: Anti-slip design ensures safety, commonly seen in public places such as shopping malls and subway stations.
Indoor and outdoor decoration: used for suspended ceilings, curtain walls or balcony fences to create an industrial style aesthetic effect.

3. Transportation and Environmental Engineering

Bridges and Tunnels: Inspection channels, drainage grilles and guardrails are corrosion-resistant and have low maintenance costs.
Sewage Treatment: Sewage pool platforms and sludge treatment areas are resistant to corrosive substances.

4. Special Scenarios

Marine Engineering: Offshore oil platforms use stainless steel or hot-dip galvanized flat grating (hot-dip galvanizing treatment) to adapt to high salt spray environments.
Logistics Warehousing: Shelf layers optimize space utilization and are light-permeable and ventilated.

Selection and adaptation suggestions

Process type

Pressed welding type for heavy-duty scenarios, I-shaped flat grating for lightweight requirements.

Material selection

Carbon steel (economical and durable) for ordinary environments, stainless steel or aluminum alloy for highly corrosive environments.

Surface treatment

Hot-dip galvanizing is recommended for outdoor or humid environments to extend service life.

Our services

1. Sample provision

Provide product samples according to customer requirements, so that customers can intuitively understand the quality, appearance and performance of the products. Samples can help customers make better decisions and also help build customer trust in the products.

2. Quality assurance and maintenance

Establish an after-sales service team and provide a certain period of quality assurance. During the warranty period, if there are quality problems with the product, it will be repaired or replaced free of charge. For products that are out of warranty, paid maintenance services can also be provided.

Our factory

Zhaomai Company has over 120 employees, including senior engineers and professional technicians. The company has introduced internationally advanced production equipment and testing instruments, is equipped with a CAD design system, and has established a strict quality control system. With over 20 years of strong experience, the company provides customers with a variety of high-quality wire mesh products.

Large-scale Production

The factory covers an area of 23,500㎡ and is equipped with over 200 pieces of professional equipment, resulting in a high annual production capacity.

Professional Team and Technical Support

We have 20 engineers and over 100 technicians, utilizing CAD design and a full-process ISO management system to achieve precise product control and continuous innovation.

Comprehensive Quality Control

We are triple-certified with ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Safety), ensuring standardized management from raw material inspection and production processes to final product inspection.

Global Supply Chain Service Capability

Our products are consistently supplied to multiple countries and regions worldwide. We have experience handling large-volume orders and provide integrated logistics support including professional packaging, multimodal transport, and export customs clearance.

Flexible Customization and Project Responsiveness

We support in-depth customization from specifications and processes to surface treatment. The typical delivery time for regular orders is 15-25 business days, and we can provide dedicated scheduling for urgent or large-scale projects.
