Curved Gabions
Our curved gabions fabricated from premium, corrosion-resistant steel wire conforming to ASTM A975/EN 10223 standards, these specialized systems offer seamless serpentine alignment for riverbank stabilization, winding highway slopes, and premium architectural landscaping. Sourcing factory-direct from our production lines completely eliminates the need for expensive, labor-intensive onsite wire cutting—maximizing your project installation efficiency while ensuring a non-bulging, permanent curvilinear alignment.
- Product Introduction
Our premium curved gabions are engineered modular retaining structures designed to seamlessly execute fluid curves, radius bends, and organic architectural contours without compromising gravity retention performance. These specialized contouring systems are ideal for serpentine riverbank stabilization, winding highway slope retention, sweeping terraced landscape walls, and contemporary urban hardscape seating. Utilizing advanced automated production lines and custom CAD pattern tooling, our factory delivers these units with precise radius specifications to match your exact engineering drawings and project compliance standards. Sourcing directly from our facility eliminates the need for expensive, labor-intensive onsite wire cutting and modifications, significantly lowering installation overhead while ensuring a structurally sound, non-bulging curvilinear alignment.
Technical Specifications & Material
To achieve precise curvature while maintaining monolithic strength under dynamic lateral pressures, our curved gabions utilize specialized trapezoidal, segmented, or pre-formed flexible configurations conforming strictly to ASTM A975 and EN 10223 standards.
|
Technical Parameter |
Flexible Double-Twisted Woven |
Premium Pre-Formed Welded |
|
Curvature Execution Method |
Segmented multi-faceted articulation & overlapping selvedge lines |
Factory-calibrated trapezoidal panels or variable-radius custom grids |
|
Standard Mesh Aperture |
60×80 mm, 80×100 mm, 100×120 mm |
50×50 mm, 75×75 mm, 100×100 mm |
|
Core Wire / Edge Wire Gauge |
2.2 mm / 2.7 mm up to 3.0 mm / 3.8 mm |
3.5 mm / 4.0 mm up to 5.0 mm / 5.0 mm |
|
Anti-Corrosion Coating Options |
• Heavy Galvanized (Class A, up to 275g/m²) |
• Heavy Galvanized (Class A, up to 275g/m²) |
|
Structural Reinforcement |
Customized inner diagonal brace loops & 1-meter spaced radial diaphragms |
Heavy-duty pre-formed corner helical binders, spiral coils & internal stiffeners |
Coating Selection
|
Coating Tier |
Technical Specifications & Weight |
Accelerated Corrosion Resistance |
Optimal Deployment Environments |
Engineered Design Life |
|
Heavy-Duty Hot-Dip Galvanized (Class A / Class 3) |
Up to 275 g/m² coating weight (Conforming to ASTM A641 / BS EN 10244-2) |
Standard industrial atmospheric exposure resistance |
Terrestrial retaining walls, inland erosion control, non-saline/neutral soils |
Up to 50 Years (Terrestrial application) |
|
Galfan Alloy Coating (Zn-5%Al-MM / Zn-10%Al-MM) |
Zinc-Aluminum-Mischmetal alloy; advanced self-healing micro-structure |
Passes premium 10-year accelerated salt-spray laboratory testing |
High-moisture areas, moderate riverbeds, urban runoff zones |
Up to 80+ Years (2x to 3x standard galvanization) |
|
Marine-Grade PVC/PE Coated (Over Galvanized Core) |
0.5 mm nominal organic polymer cladding extruded over metallic core |
Maximum protection against mechanical abrasion & UV aging |
Coastal wave actions, hyper-saline river banks, acidic soils (pH 4–9) |
Up to 100 Years (Subterranean & coastal) |
|
Marine-Grade PVC/PE Coated (Over Galfan Core) |
0.5 mm nominal organic polymer cladding extruded over Galfan alloy core |
Ultimate barrier protection combined with a self-healing alloy core |
Highly aggressive marine microclimates, industrial wastewater channels, contaminated soils |
Up to 120 Years (Ultimate infrastructure grade) |
Retaining & Landscape Applications

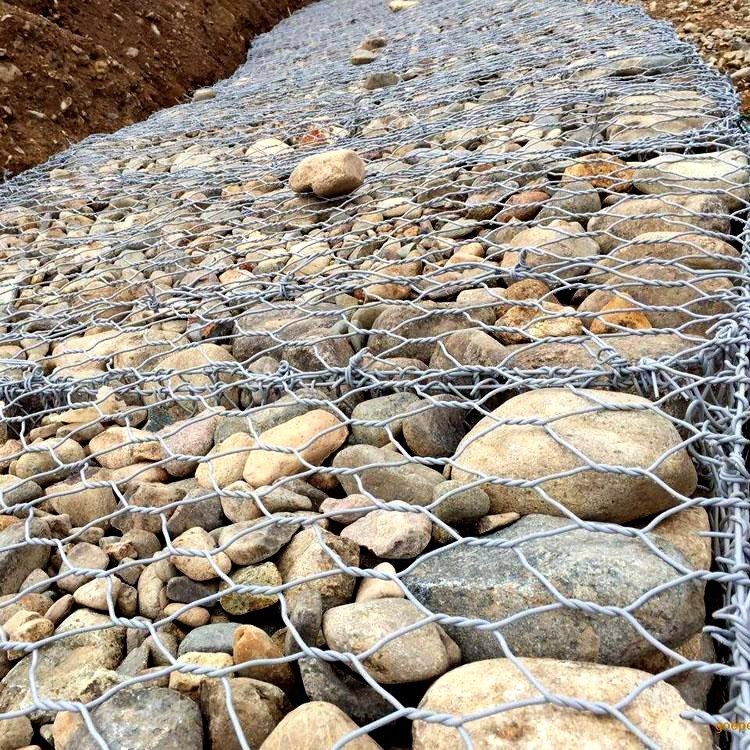

Serpentine Hydraulic & Riverbank Engineering
Serpentine Hydraulic & Riverbank Engineering
Natural watercourses rarely run straight. Our curved gabions are specified as heavy-duty retaining wall gabion baskets for curved channel linings and concave riverbanks. The natural radius curvature eliminates sharp hydraulic vortex points, smoothly redirecting high-velocity water flows and mitigating critical toe-erosion.

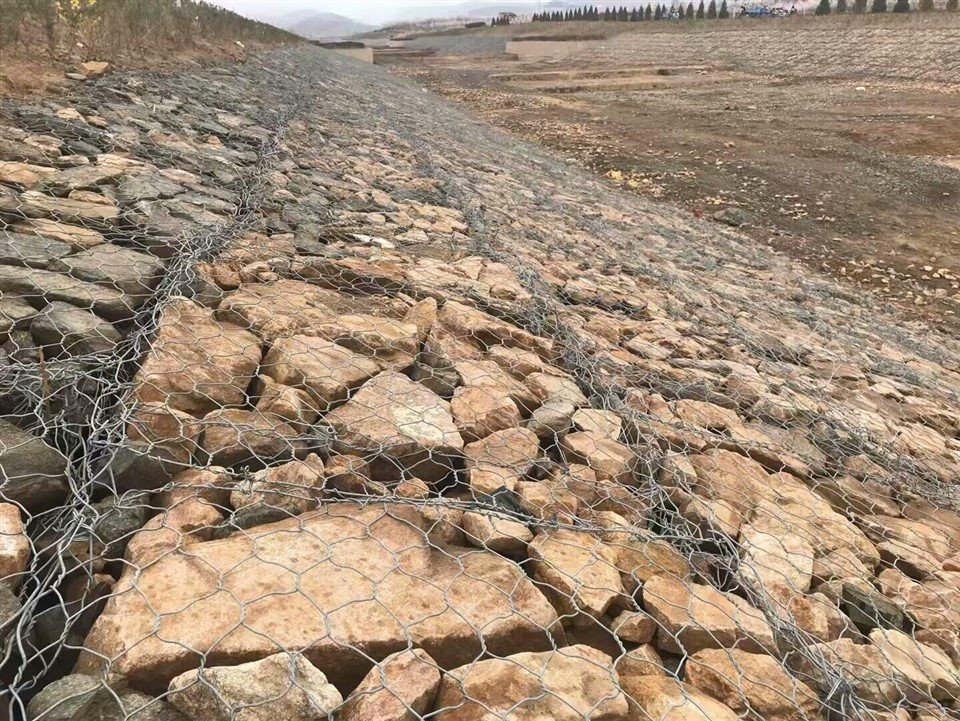

Winding Highway & Infrastructure Slope Retention
When infrastructure cuts through mountainous terrain, roads follow natural curves. Using linear wire rock baskets creates uneven stress distribution and gaps at joints. Implementing custom-radius curved gabions ensures a continuous, continuous interlocking gabion blocks wall that mirrors the road alignment, distributing lateral soil pressures uniformly across the entire curved face.
High-End Architectural Landscaping & Terraced Zoning
Designers deploy these curved gabions to build sweeping terraced retaining walls, winding garden boundary fences, dynamic outdoor amphitheater seating, and circular tree-ring planters that elevate the property's structural and aesthetic value.
Customization Services
OEM/ODM factory flexible customization services
CAD Blueprint Exact Matching
Send us your landscape architectural plans or site survey drawings. Our engineering team will calculate the optimal segmented layout or trapezoidal panel sizes to deliver a flawless radius onsite.
Variable Structural Configurations
We can blend flexible woven mesh bases (for underwater foundations) with rigid welded curved facing panels (for visible, crisp architectural alignments) to balance budget and aesthetics.
Custom-Extruded RAL Colors
Match your curved gabions to the urban architectural scheme with our heavy-duty PVC/PE cladding, available in Anthracite Gray (RAL 7016), Olive Green (RAL 6003), or custom specifications.
FAQ
Q: How do you achieve a smooth radius using curved gabions without leaving structural gaps between baskets?
A: Achieving a true smooth radius without gaps or site-cutting requires specialized engineering configurations. For welded systems, our factory fabricates custom trapezoidal gabion blocks where the inner face panel is narrower than the outer face panel, creating a natural, factory-calibrated curve. For woven systems, we customize the internal diaphragm alignments at radial angles, allowing the wire rock baskets to bend progressively. This factory-preformed design ensures a continuous, structural-grade mesh interlocking sequence that completely eliminates structural weak points and gaps.
Q: Can curved gabions handle the same structural lateral load as standard linear retaining wall gabion baskets?
A: Yes, and in many cases, convex curved gabions configurations offer superior load resistance due to the natural arch action (the arch effect), which inherently redistributes lateral earth pressures back into the surrounding soil matrix. However, because curves experience multi-directional stress vectors, we reinforce all our curved tall gabion baskets with internal cross-tie lacing lines and heavy-gauge selvedge wires to prevent any outward panel distortion or localized bulging under high-compaction rock filling.
Q: Can I request a physical sample of custom-radius curved gabions before placing a bulk container order?
A: Yes, absolutely. We support B2B purchasers by providing small-scale physical panel mock-ups or material sample kits (including Galfan and PVC-coated wire meshes in various RAL colors)
