Retaining Wall Gabion Baskets
Heavy-Duty Gabion Baskets for Earth Retention & Erosion Control High-performance modular gabion blocks engineered for riverbanks, retaining walls, and steep slope reinforcement. Standard Compliant: Manufactured to strict ASTM A975 / EN 10223 standards Superior Drainage & Stability: Permeable design prevents hydrostatic pressure Factory-Direct & Custom: Precision-built to your exact engineering blueprints
- Product Introduction
Retaining wall gabion baskets are engineered from high-quality low-carbon steel wire (Q195/Q235), featuring either a flexible double-twisted hexagonal wire mesh or a rigid welded panel structure. Filled with hard, durable stone to form robust heavy-duty units, these baskets are available in multi-tier protective finishes, including heavy-duty Galvanized (up to 275g/m²), 10-year salt-spray resistant Galfan (Zn-Al alloy), and marine-grade PVC/PE coating. They serve as reliable, high-performance solutions for slope protection, soil and water conservation, riverbank engineering, architectural landscaping, and critical civil engineering projects. To perfectly match your specific project drawings and site conditions, our factory supports full customization across mesh configurations, wire protective coatings, basket dimensions, internal partitions, and lacing wire details. As a direct manufacturer strictly conforming to ASTM A975 and EN 10223 standards, we operate advanced automated weaving and welding production lines, enabling us to efficiently fulfill high-volume orders with precision tolerances and structural integrity.
Products Advantages
Anti-Bulging Technology & High Tensile Strength
Heavy-Duty Selvage Wires: Edge wires are 20% to 30% thicker than the main mesh wire, ensuring edges do not tear or deform during assembly and stone filling.
Internal Diaphragms & Tie Rods: Equipped with reinforced diaphragms every 1 meter, alongside specialized stiffener hooks and tie-wires to significantly increase overall wall rigidity.
Welded vs. Woven Options: Welded Gabions: Offer superior surface alignment, zero bulging, and ultra-fast jobsite assembly-ideal for architectural, landscape, and vertical retaining walls.
Double-Twisted Woven Gabions: Exceptional structural flexibility that accommodates ground settlement without fracturing-ideal for large-scale, flexible soil retention structures.
50–100 Years Design Life
Galfan (Zinc-5% Al-MM) Coating: Delivers 2 to 3 times the corrosion resistance of traditional hot-dip galvanizing, passing 1000+ hours of salt spray testing.
Dual-layer protection (Galvanized / Galfan + PVC) :tailored for saline soils, coastal projects, or acidic waters-UV-resistant and crack-proof even in sub-zero climates.
Labor-Saving Design
Pre-assembled & Foldable Delivery: Factory pre-connected and flat-packed for effortless site unfolding directly out of the crate.

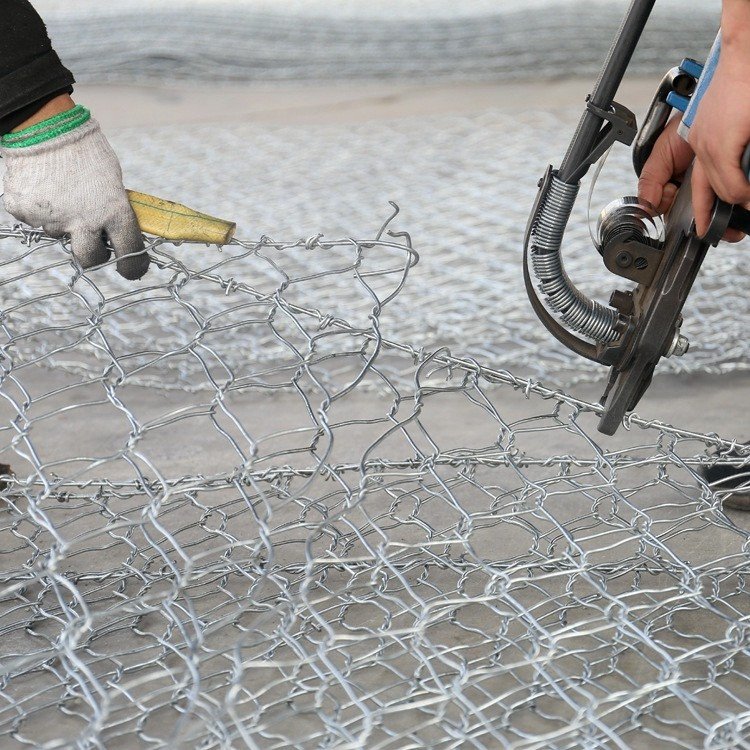

Pneumatic locking tools-assembling 3 to 5 times faster than manual wire tying.
Self-Draining & Eco-Restoration
Hydrostatic Relief: Natural permeable voids rapidly release water buildup behind retaining walls, eliminating the need for complex drainage pipe systems.
Eco-Integration: Allows natural soil accumulation and vegetation growth within stone gaps, seamlessly blending with the surrounding ecosystem.
ASTM/EN Compliance & Engineering Customization
Fully manufactured to ASTM A975 (woven) and ASTM A974 (welded) / EN 10223-3 standards.
Fully customizable to precise engineering drawings, complete with Mill Test Certificates (MTC) and third-party inspection reports (SGS / TÜV).
Technical Specifications & Material Options
Our factory fabricates all products using structural-grade materials in strict compliance with ASTM A975 and EN 10223 standards.
Structural Grid & Fabrication Technology
We operate specialized automated production lines to deliver two distinct structural configurations depending on your project's load-bearing and aesthetic requirements:

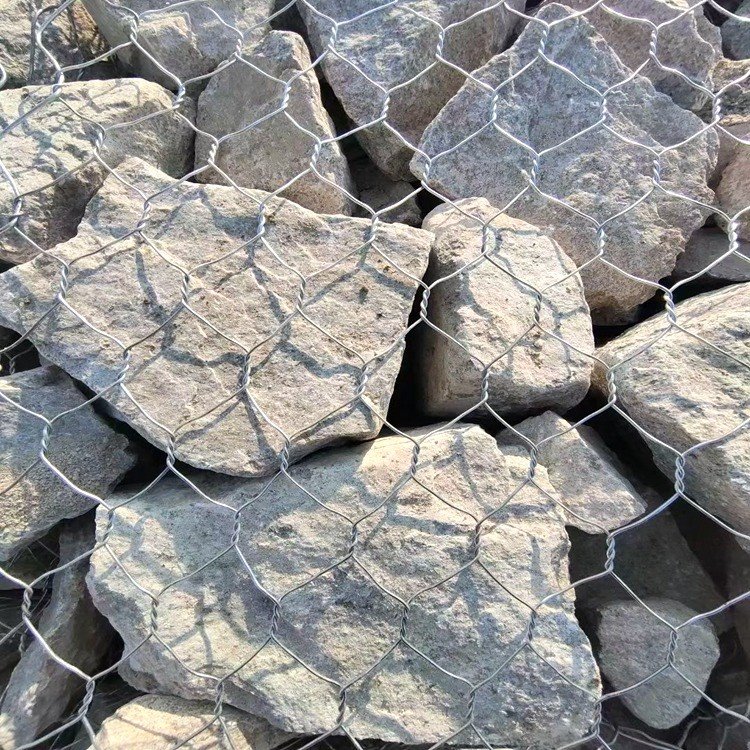

Double-Twisted Hexagonal Woven Mesh: Formed by mechanically intertwining continuous pairs of wires with a 3-twist or 5-twist interlocking pattern. This non-raveling, flexible matrix provides exceptional isotropic tensile strength, allowing the structure to absorb differential settlement without localized fracturing.
Rigid Welded Wire Panels: Fabricated using state-of-the-art CNC electric resistance welding , achieving a weld shear strength exceeding 75% of the wire's yield strength. These panels possess high dimensional stability-with tight panel tolerances within +/- 2 mm, and superior shear resistance from high-tensile steel wire (500 to 750 MPa).
Standard Engineering Configurations
|
Technical Parameter |
Double-Twisted Woven Mesh |
Rigid Welded Wire Panels |
|
Standard Mesh Aperture |
60×80 mm, 80×100 mm, 100×120 mm |
50×50 mm, 75×75 mm, 100×100 mm |
|
Base Metal Raw Material |
Low-Carbon Steel Wire (Q195 / Q235) |
Low-Carbon Steel Wire (Q195 / Q235) |
|
Core Wire Diameter |
2.0 mm – 3.2 mm |
3.0 mm – 5.0 mm |
|
Selvedge/Edge Wire |
2.7 mm – 4.0 mm (Heavy reinforced rim) |
3.0 mm – 5.0 mm |
|
Lacing/Tie Wire Supplied |
2.2 mm (Shipped at 3%–5% of total weight) |
N/A (Spiral binders/C-rings preferred) |
|
Tensile Strength (Wire) |
350 – 500 MPa (Conforming to EN 10223) |
450 – 550 MPa |
|
Elongation at Break |
≥ 10% under full structural loading |
≥ 10% under full structural loading |
|
Coating |
Heavy Galvanized / Galfan / PVC or PE Coated over Galvanized or Galfan |
|
Primary Applications
Acoustic Perimeter Fencing & Noise Barriers
When filled with high-density, multi-angle hard stone, these thick retaining wall gabion baskets scatter and absorb environmental noise vectors, providing exceptional acoustic dampening along highways and industrial property boundaries.

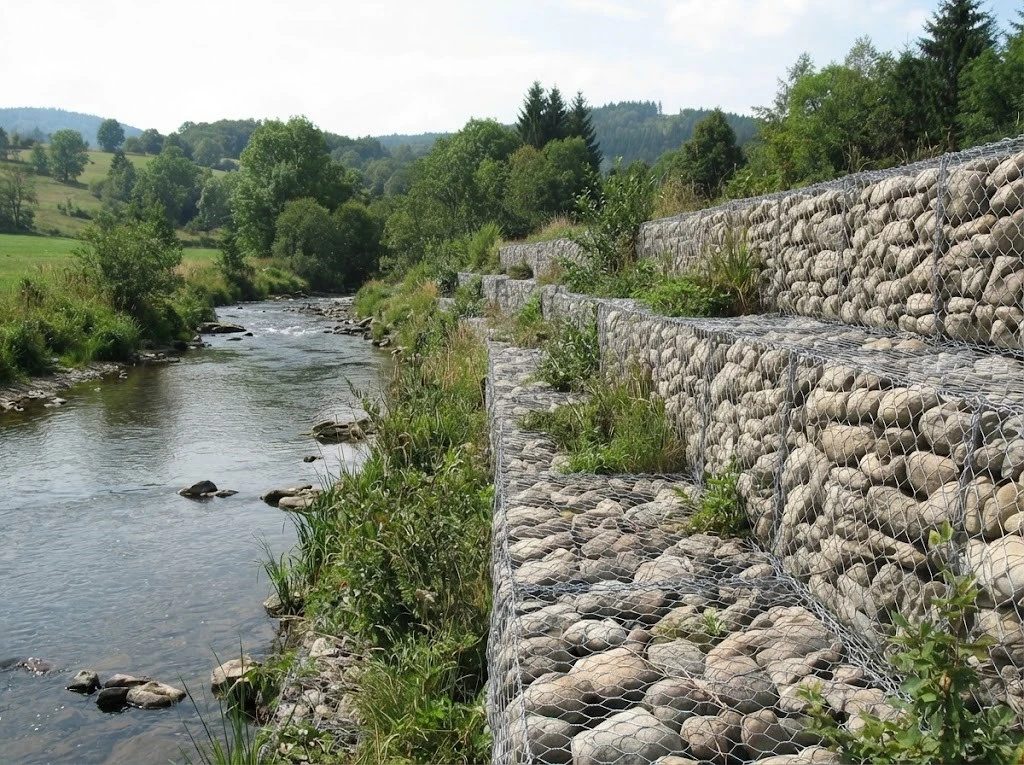

Terraced Garden & Sloped Property Zoning
Creating multi-level stepped terraced landscapes on sloped residential or commercial properties. Designers specify our retaining wall gabion baskets to transform unusable steep inclines into functional, level, and visually striking terraced zones.
Massive Slope Stabilization & Earth Retention
Ideal for building structural-grade, multi-tiered tall gabion baskets systems. Stacking multiple layers of these retaining wall gabion baskets allows contractors to safely hold back steep mountain cuts and deep excavation slopes without the risk of catastrophic hydrostatic pressure build-up.
FAQ
Q: How do you prevent structural bulging or "belly" distortion in tall gabion baskets configurations?
A: tructural bulging in a retaining wall gabion baskets system typically occurs from dynamic internal stone settlement and insufficient bracing. To eliminate this engineering risk, our factory integrates heavy-duty internal diaphragms/partitions spaced at precise 1-meter intervals across all gabion blocks. Additionally, for configurations exceeding 1 meter in height, we supply internal stiffeners/bracing wires. When stacking multiple tiers of tall gabion baskets, we strictly recommend a 4° to 6° structural batter (inward slope back into the hillside) and compacting the rock fill in standard 300mm layers to distribute lateral earth pressures uniformly.
Q: What is the proven engineered design life of your wire rock baskets in marine or highly acidic soil environments?
A: The operational lifespan of our retaining wall gabion baskets is strictly dictated by the surface coating technology selected. For standard non-saline terrestrial environments, our Class A heavy-duty Galvanized wire (up to 275 g/m²) offers a design life of up to 50 years. For aggressive microclimates, coastal riverbanks, or highly acidic soils (pH 4–9), we recommend our marine-grade PVC/PE coating extruded over a Galfan alloy core. This dual-layer chemical barrier has passed rigorous 10-year accelerated salt-spray testing and guarantees a maintenance-free infrastructure service life of up to 120 years under subterranean and high-scour conditions.
Q: Do your retaining wall gabion baskets meet the compliance standards required for international municipal engineering tenders?
A: Yes. As a direct B2B manufacturer, all our wire rock baskets and gabion blocks are engineered and fabricated in strict accordance with global civil engineering criteria, specifically ASTM A975 (Standard Specification for Double-Twisted Hexagonal Mesh Gabions) and EN 10223 (Steel Wire and Wire Products for Fencing and Netting). We utilize structural low-carbon steel wire (Q195/Q235) featuring a minimum tensile strength of 350–550 MPa and an elongation at break of ≥ 10%. Full raw material test reports (MTRs), coating thickness certifications, and compliance documentation are provided with every industrial volume shipment for immediate structural sign-off.
